Process Technology

Wet Process Heating and Cooling Equipment

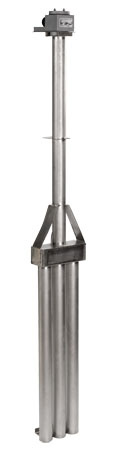

3V Series, Triple Metal Deep Tank Heaters

WATTS

VOLTS

HOT
ZONE
In./(mm)

3 TUBE LENGTH

STEEL

304 SS

316 SS

TITANIUM

EST. SHIP WGT. Lbs./(kg)

18000

240
480

36
(915)

30
(760)

3VP18236-R*-**
3VP18436-R*-**

3VF18236-R*-**
3VF18436-R*-**

3VS18236-R*-**
3VS18436-R*-**

3VT18236-R*-**
3VT18436-R*-**

70
(32)

24000

240
480

44
(1120)

37
(940)

3VP24244-R*-**
3VP24444-R*-**

3VF24244-R*-**
3VF24444-R*-**

3VS24244-R*-**
3VS24444-R*-**

3VT24244-R*-**
3VT24444-R*-**

75
(34)

27000

480

50
(1170)

44
(1120)

3VP27450-R*-**

3VF27450-R*-**

3VS27450-R*-**

3VT27450-R*-**

80
(36)

30000

480

55
(1400)

49
(1245)

3VP30455-R*-**

3VF30455-R*-**

3VS30455-R*-**

3VT30455-R*-**

87
(40)

36000

480

64
(1625)

58
(1475)

3VP36464-R*-**

3VF36464-R*-**

3VS36464-R*-**

3VT36464-R*-**

100
(46)

45000

480

72
(1830)

66
(1675)

3VP45472-R*-**

3VF45472-R*-**

3VS45472-R*-**

3VT45472-R*-**

120
(55)

48000

480

76
(1930)

70
(1780)

3VP48476-R*-**

3VF48476-R*-**

3VS48476-R*-**

3VT48476-R*-**

125
(57)

54000

480

84
(2135)

78
(1980)

3VP54484-R*-**

3VF54484-R*-**

3VS54484-R*-**

3VT54484-R*-**

140
(64)

*Specify cold zone required. Example: 3VP18236-R59-P2.
** Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:

• Steel.
• 304 stainless steel.
• 316 stainless steel.
• Titanium.

LONG LASTING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.
• Thermal protector built in. Replaceable P2 protector standard for solutions up to 180°F (82°C).
• Non-floating construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE.

SIZES: 18,000 watts to 54,000 watts.

VOLTAGES: 240 to 480 volts. Three phase standard, single phase available. Some amperage limitations apply, consult factory.

OPTIONS AVAILABLE (consult factory):

• Resettable thermal protectors:
•  P6: for solutions up to 230°F (110°C).
• Special configurations and lengths.
• Longer wire and conduit lengths.
• Lower watt densities for highly viscous solutions.
• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
