Process Technology

Wet Process Heating and Cooling Equipment

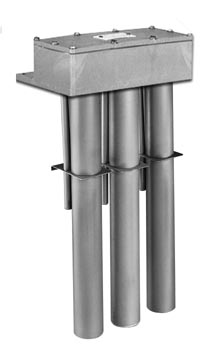

3P, 3F, 3S and 3T Series, Triple Metal Heaters

WATTS

VOLTS

 OVERALL LENGTH
In./(mm)		 HOT
ZONE
In./(mm)		 STEEL 304
ST. STEEL		 316
ST. STEEL		 TITANIUM SHIP
WGT. Lbs./(kg)
3000 240
480 		11
(280)		 6
(155)		 3P3211-*-**
3P3411-*-**		 3F3211-*-**
3F3411-*-**		 3S3211-*-**
3S3411-*-**		 3T3211-*-**
3T3411-*-**		 21
(9.5)
6000 240
480		 17
(430)		 10
(255)		 3P6217-*-**
3P6417-*-**		 3F6217-*-**
3F6417-*-**		 3S6217-*-**
3S6417-*-**		 3T6217-*-**
3T6417-*-**		 30
(14)
9000 240
480		 23
(585)		 16
(405)		 3P9223-*-**
3P9423-*-**		 3F9223-*-**
3F9423-*-**		 3S9223-*-**
3S9423-*-**		 3T9223-*-**
3T9423-*-**		 33
(15)
12000 240
480		 29
(735)		 20
(510)		 3P12229-*-**
3P12429-*-**		 3F12229-*-**
3F12429-*-**		 3S12229-*-**
3S12429-*-**		 3T12229-*-**
3T12429-*-**		 39
(18)
15000 240
480		 35
(890)		 25
(635)		 3P15235-*-**
3P15435-*-**		 3F15235-*-**
3F15435-*-**		 3S15235-*-**
3S15435-*-**		 3T15235-*-**
3T15435-*-**		 45
(20.5)
18000 240
480		 40
(1015)		 30
(760)		 3P18240-*-**
3P18440-*-**		 3F18240-*-**
3F18440-*-**		 3S18240-*-**
3S18440-*-**		 3T18240-*-**
3T18440-*-**		 51
(23)
24000 240
480		 47
(1195)		 37
(940)		 3P24247-*-**
3P24447-*-**		 3F24247-*-**
3F24447-*-**		 3S24247-*-**
3S24447-*-**		 3T24247-*-**
3T24447-*-**		 63
(28.5)
27000 480 54
(1370)		 44
(1120)		 3P27454-*-** 3F27454-*-** 3S27454-*-** 3T27454-*-** 69
(31)
30000 480 59
(1500)		 49
(1245)		 3P30459-*-** 3F30459-*-** 3S30459-*-** 3T30459-*-** 75
(34)
36000 480 68
(1730)		 58
(1475)		 3P36468-*-** 3F36468-*-** 3S36468-*-** 3T36468-*-** 84
(38)
Standard units consist of single head with single conduit.  Add "-1" for single phase or "-3" for three phase.  For individual heads, order 3 single tube heaters.
** Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:

• Steel
• 304 stainless steel
• 316 stainless steel
• Titanium

LONG LASTING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.
• Thermal protector built in. Replaceable P1 fuse standard for solutions up to 180°F (82°C).
• Non-floating construction.

CERTIFICATIONS: UL (except steel sheath), CSA, and CE.

SIZES: 3,000 watts to 36,000 watts.

VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Each head is single phase standard.  May be wired together as single or three phase.

OPTIONS AVAILABLE (consult factory):

• Replaceable thermal protectors:
•  P4: for solutions from 180°F (82°C) to 230°F (110°C).
•  P5: for solutions from 230°F (110°C) to 300°F (150°C).
• Resettable thermal protectors:
•  P2: for solutions up to 180°F (82°C).
•  P6: for solutions from 180°F (82°C) to 230°F (110°C).
•  P7: for solutions from 230°F (110°C) to 300°F (150°C).
• Special configurations and lengths.
• One common head (terminal enclosure) with single conduit for single or three phase.
• Longer wire and conduit lengths.
• Lower watt densities for highly viscous solutions.
• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram) IN .PDF FORMAT (approximately 100-150KB).
