Wet Process Heating and Cooling Equipment

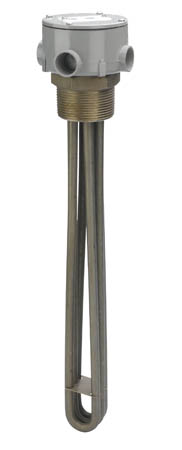

5T Series, 2-1/2" (Stainless Steel) Screw Plug Heaters

WATTS	VOLTS	OVERALL LENGTH In./(mm)	PIPE THREAD	NO. OF ELEMENTS	MODEL NUMBER	SHIP WGT. Lbs./(kg)
4500	240 480	12" (305)	2-1/2	3	5T4.5212 5T4.5412	7 (3.5)
6000	240 480	18" (460)	2-1/2	3	5T6218 5T6418	8 (4)
9000	240 480	25" (635)	2-1/2	3	5T9225 5T9425	9 (4.5)
12000	240 480	32" (815)	2-1/2	3	5T12232 5T12432	10 (4.5)
15000	240 480	40" (1020)	2-1/2	3	5T15240 5T15440	12 (5.5)
18000	240 480	48" (1220)	2-1/2	3	5T18248 5T18448	15 (7)
Other sizes available, consult factory.

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: For use in most alkaline or aqueous plating solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths and screw plug available in 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE: Watt densities of 40 watts per square inch (6.2 w/cm²) ensure long service life.

CORROSION RESISTANT HEAD: Vapor resistant, flame retardant PVC enclosure.

SAFETY FEATURES:

• Grounded construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE.

SIZES: 4,500 watts to 18,000 watts (316 stainless steel).

VOLTAGES: 120 to 600 volts. Three phase standard, single phase available on some models.

OPTIONS AVAILABLE (consult factory):

• Special configurations and lengths.

• Thermowells.

• Explosion resistant enclosures.

• Carbon steel or incoloy elements.

• Lower watt densities for highly viscous solutions.

• Integral thermostats.

• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)
