Wet Process Heating and Cooling Equipment

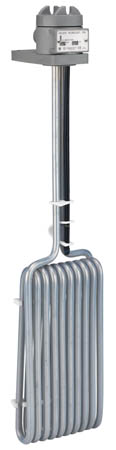

HXO Series, Fluoropolymer (PTFE) Heaters

WATTS

VOLTS

WIDTH
In./(mm)

HEATER PAD LENGTH
In./(mm)

HOT ZONE
In./(mm)

STD. VERT.
LENGTH
In./(mm)

MAX.
COLD ZONE
In./(mm)

MODEL
NUMBER

SHIP WGT.
Lbs./(kg)

500

120
240

5
(125)

6
(155)

8
(205)

11
(280)

36
(915)

HXO.5105-06-11-**
HXO.5205-06-11-**

6
(2.5)

1000

120
240

6
(155)

6
(155)

8
(205)

11
(280)

36
(915)

HXO1106-06-11-**
HXO1206-06-11-**

7
(3.5)

2000

120
240
480

6
(155)

10
(255)

12
(305)

17
(430)

35
(890)

HXO2106-10-17-**
HXO2206-10-17-**
HXO2406-10-17-**

8
(4)

3000

240
480

6
(155)

12
(305)

14
(365)

23
(585)

35
(890)

HXO3206-12-23-**
HXO3406-12-23-**

13
(6)

4000

240
480

6
(155)

19
(485)

21
(545)

29
(735)

35
(890)

HXO4206-19-29-**
HXO4406-19-29-**

15
(7)

5000

240
480

6
(155)

20
(510)

22
(560)

35
(890)

31
(790)

HXO5206-20-35-**
HXO5406-20-35-**

18
(8)

6000

240
480

8
(205)

22
(560)

24
(610)

40
(1015)

25
(635)

HXO6206-22-40-**
HXO6406-22-40-**

22
(10)

8000

240
480

8
(205)

36
(915)

38
(980)

47
(1195)

28
(710)

HXO8206-36-47-**
HXO8406-36-47-**

25
(11.5)

9000

240
480

8
(205)

40
(1015)

42
(1085)

54
(1370)

30
(760)

HXO9206-40-54-**
HXO9406-40-54-**

28
(13)
Single phase only.
**Thermal Overload Protection

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purge systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch, 1.5w/cm2) for long service life.

CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded internal metal element.
• Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).
• Non-floating construction.

CERTIFICATIONS: UL listed (except steel) to U.S. and Canadian safety requirements, and CE.

SIZES: 500 watts to 9,000 watts.

VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Single phase only.

OPTIONS AVAILABLE (consult factory):

• Replaceable thermal protectors:
•  P4: for solutions from 180°F (82°C) to 230°F (110°C).
• Resettable thermal protectors:
•  P2: bi-metal switch for solutions up to 180°F (82°C).
•  P8: type-J thermocouple for solutions from 180°F (82°C) to 230°F (110°C).
•  P3: type-J thermocouple for solutions from 230°F (110°C) to 300°F (150°C).
• Longer vertical lengths (cold zones).
• Polypropylene guards: recommended for applications up to 180°F (82°C), sold separately.
• Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180°F (82°C), sold separately.
• Special configurations.
• Longer wire and conduit lengths.
• Flexible continuous fluoropolymer leads (P3 protector only).
• Lower watt densities for highly viscous solutions and technical acids.
• Temperature and level controls sized to match the heater.

NOTE: Hot zone extends 2" (51mm) above the heater pad length.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram)

Polypropylene Guards

Guards available recommended for all fluoropolymer and quartz heaters.
Standard guards made of polypropylene. Special guards made of fluoropolymer available for quartz and fluoropolymer heaters.

All heaters must be operated in conjunction with appropriate temperature controls and thermal systems.
