Process Technology

Wet Process Heating and Cooling Equipment

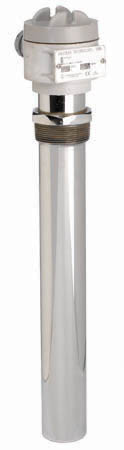

T Series, 2" Tubular Screw Plug Heaters

WATTS

VOLTS

 PIPE
THREAD		 OVERALL
LENGTH
In./(mm)		 304
ST. STEEL		 316
ST. STEEL		 TITANIUM SHIP WGT.
In./(mm)
1000 120
240		 2 10
(255)		 FT1110
FT1210		 ST1110
ST1210		 TT1110
TT1210		 11
(5)
2000 120
240
480		 2 14
(355)		 FT2114
FT2214
FT2414		 ST2114
ST2214
ST2414		 TT2114
TT2214
TT2414		 14
(6.5)
3000 240
480		 2 19
(485)		 FT3219
FT3419		 ST3219
ST3419		 TT3219
TT3419		 16
(7.5)
4000 240
480		 2 23
(585)		 FT4223
FT4423		 ST4223
ST4423		 TT4223
TT4423		 20
(9)
6000 240
480		 2 33
(840)		 FT6233
FT6433		 ST6233
ST6433		 TT6233
TT6433		 26
(12)
8000 240
480		 2 40
(1020)		 FT8240
FT8440		 ST8240
ST8440		 TT8240
TT8440		 29
(13.5)
9000 240
480		 2 47
(1195)		 FT9247
FT9447		 ST9247
ST9447		 TT9247
TT9447		 32
(14.5)
12000 480 2 61
(1550)		 FT12461 ST12461 TT12461 37
(17)

Single phase standard, three phase available as option.  Add "-3" to end of model number.  Other sizes available, consult factory.

Product Features and Benefits:

SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most aqueous alkaline, plating solutions and rinse tanks.  Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION: Heavy wall metal sheaths and screw plug available in:

• 304 stainless steel.
• 316 stainless steel.
• Titanium.

OUTSTANDING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.

CERTIFICATIONS: UL, CSA and CE.

SIZES: 1,000 watts to 12,000 watts.

VOLTAGES: 240 or 480 volts.  208, 380, 415, 600 and other voltages available.  Single phase standard, three phase available.

OPTIONS AVAILABLE (consult factory):

• Special configurations and lengths.
• Explosion resistant enclosures.
• Longer wire and conduit lengths.
• Lower watt densities for highly viscous solutions.
• Temperature and level controls sized to match the heater.

DOWNLOAD THE INFORMATION SHEET (including dimensional diagram) IN .PDF FORMAT (approximately 100-150KB).
You will need the Adobe Acrobat program to view the information sheet. If you do not have Adobe Acrobat and would like to download it for free, press the button below.
