Wet Process Heating and Cooling Equipment

FR Option, Flex Riser for Electric Heaters

Product Features and Benefits:

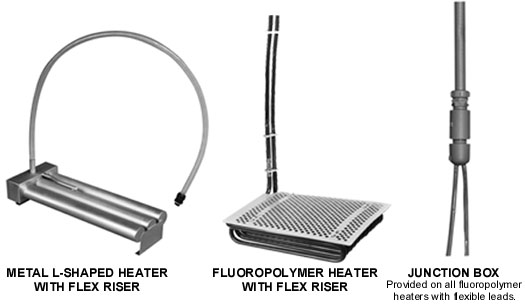

APPLICATIONS: Provides simplified and versatile installation for L-shaped electric bottom heaters in various tank depths. The flex riser system saves dollars by reducing shipping costs since a parcel carrier can ship most heaters.

RUGGED CONSTRUCTION:

• STAINLESS STEEL HEATERS: braided 304 stainless steel sheath over a fluoropolymer (PTFE) inner tube.

• TITANIUM HEATERS: Fluoropolymer (FEP) tube with integral 316 stainless steel reinforcement.

• FLUOROPOLYMER (PTFE) HEATERS: continuous extension of tubing with inline junction box.

LONG LASTING PERFORMANCE: Liquid tight fluoropolymer tube is chemically inert and is protected by either a stainless steel outer braid (stainless steel heaters) or reinforced core (titanium heaters).

SAFETY FEATURES: Thermal protection standard on all flex riser heaters:

• Metal heaters: resettable P2 bi-metal switch.

• Fluoropolymer heaters: P3 J-type thermocouple.

CERTIFICATIONS: UL and CE.

SIZES:

• METAL HEATERS: 48-inch (1220mm) long, ž-inch (19mm) diameter, tubing for 500 to 18,000 watt heaters.

• FLUOROPOLYMER HEATERS: 48-inch (1220mm) long, 7/16-inch (11mm) diameter, fluoropolymer (PTFE) tubing with inline junction box. Connected to a 36-inch (915mm) long, ˝-inch (13mm) diameter, PVC conduit for 500 watt to 6000 watt heaters. 3-inch (75mm) minimum bend radius.

VOLTAGES: 120, 240 or 480 volts for various heater styles. 208, 380, 415, 600 and other voltages available. Single phase only for fluoropolymer heaters.

OPTIONS AVAILABLE (consult factory):

• Medium and high temperature resettable P2 bi-metal thermal protectors for metal heaters only.

• Special configurations and lengths.

• DOWNLOAD THE INFORMATION SHEET (including dimensional diagram) IN .PDF FORMAT (approximately 100-150KB).
• DOWNLOAD THE FLEXRISER INSTALLATION DATA (66KB) You will need the Adobe Acrobat program to view the sheets. If you do not have Adobe Acrobat and would like to download it for free, press the button below.
