Wet Process Heating and Cooling Equipment |
|
||
| WATTS | VOLTS |
OVERALL
LENGTH In./(mm) |
HOT ZONE In./(mm) |
STEEL | 304 ST. STEEL |
316 ST. STEEL |
TITANIUM | SHIP WGT. Lbs./(kg) |
|---|---|---|---|---|---|---|---|---|
| 1000 | 120 240 |
11 (280) |
6 (155) |
P1111-** P1211-** |
F1111-** F1211-** |
S1111-** S1211-** |
T1111-** T1211-** |
7 (3.5) |
| 2000 | 120 240 480 |
17 (430) |
10 (255) |
P2117-** P2217-** P2417-** |
F2117-** F2217-** F2417-** |
S2117-** S2217-** S2417-** |
T2117-** T2217-** T2417-** |
10 (4.5) |
| 3000 | 240 480 |
23 (585) |
16 (405) |
P3223-** P3423-** |
F3223-** F3423-** |
S3223-** S3423-** |
T3223-** T3423-** |
11 (5) |
| 4000 | 240 480 |
29 (735) |
20 (510) |
P4229-** P4429-** |
F4229-** F4429-** |
S4229-** S4429-** |
T4229-** T4429-** |
13 (6) |
| 5000 | 240 480 |
35 (890) |
25 (635) |
P5235-** P5435-** |
F5235-** F5435-** |
S5235-** S5435-** |
T5235-** T5435-** |
15 (7) |
| 6000 | 240 480 |
40 (1015) |
30 (760) |
P6240-** P6440-** |
F6240-** F6440-** |
S6240-** S6440-** |
T6240-** T6440-** |
17 (8) |
| 8000 | 240 480 |
47 (1195) |
37 (940) |
P8247-** P8447-** |
F8247-** F8447-** |
S8247-** S8447-** |
T8247-** T8447-** |
23 (10.5) |
| 9000 | 240 480 |
54 (1370) |
44 (1120) |
P9254-** P9454-** |
F9254-** F9454-** |
S9254-** S9454-** |
T9254-** T9454-** |
24 (11) |
| 10000 | 240 480 |
59 (1500) |
49 (1245) |
P10259-** P10459-** |
F10259-** F10459-** |
S10259-** S10459-** |
T10259-** T10459-** |
25 (11.5) |
| 12000 | 480 | 68 (1730) |
58 (1475) |
P12468-** | F12468-** | S12468-** | T12468-** | 28 (13) |
Three phase available as option. Add "-3" before
thermal protector designator. |
||||||||

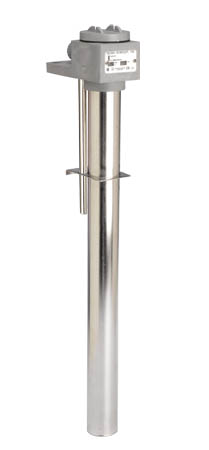

Product Features and Benefits:
SUPERIOR CHEMICAL RESISTANCE: Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.
RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:
• Steel • 304 stainless steel • 316 stainless steel • Titanium OUTSTANDING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.
CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.
SAFETY FEATURES:
• Grounded construction. • Thermal protector built in. Replaceable P1 fuse standard for solutions up to 180°F (82°C). • Non-floating construction. CERTIFICATIONS: UL (except steel sheath), CSA, and CE.
SIZES: 1,000 watts to 12,000 watts.
VOLTAGES: 120, 240 or 480 volts. 208, 380, 415, 600 and other voltages available. Single phase standard, three phase available.
OPTIONS AVAILABLE (consult factory):
• Replaceable thermal protectors:
• P4: for solutions from 180°F (82°C) to 230°F (110°C).
• P5: for solutions from 230°F (110°C) to 300°F (150°C).• Resettable thermal protectors:
• P2: for solutions up to 180°F (82°C).
• P6: for solutions from 180°F (82°C) to 230°F (110°C).
• P7: for solutions from 230°F (110°C) to 300°F (150°C).
• Special configurations and lengths. • Longer wire and conduit lengths. • Lower watt densities for highly viscous solutions. • Temperature and level controls sized to match the heater.
