Wet Process Heating and Cooling Equipment

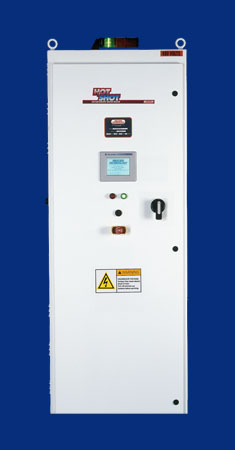

H₂OT SHOT Quartz UPDI Heater

Designed for high flow and/or high temperature applications, the Quartz H₂OT SHOT uses high-purity quartz wetted surfaces and resistive heating elements to ensure responsive heating with no product contamination.

The Quartz H₂OT SHOT is ideal for your wet bench or other point-of-use ultrapure heater application.

Read about the ADVANTAGES OF USING HOT DI WATER

FEATURES AND BENEFITS:

Hot DI Water: Heated DI water improves cleaning effectiveness and reduces rinse time in most processes.

Highly Efficient: >99% efficiency means lower cost of ownership (COO) and improved return on investment (ROI).

Outstanding Cleanliness: Ultra-clean performance is achieved through the use of high-purity quartz construction.

Patented Construction: The unique helical quartz construction provides unequaled sweeping action, creating excellent velocities through the heater and eliminating stagnant zones.

Outstanding Temperature Stability: Superior temperature accuracy improves process consistency.

Reliable: Our proven heating technology uses high-performance resistance wire, resulting in greatly enhanced service life.

"Safe Process" Design: Heating element is isolated from the process to virtually eliminate the potential for catastrophic process contamination.

Minimal Preventative Maintenance: Only minor, infrequent PM is needed

Low Facility Costs: No auxiliary gas or special ventilation needed; minimal facility requirements.

Compact Configuration: Space-conscious design minimizes footprint requirements.

No O-Rings: Flaratek^Ž and Quickgrip^Ž fittings provide leak-free operation and eliminate contamination associated with o-ring seals.

Flaretek^Ž and Quickgrip^Ž are registered trademarks of Fluoroware, Inc.

Specifications for the Hi-Flo Quartz H₂OT SHOT Ultrapure Fluid Heater:

HEATER Patented modular heating system using resistive heating (near infrared)

SIZES 24kW multiples up to 144kW (sizes down to 8kW available)

VOLTAGES 208 volt to 480 volt available, 50/60 Hz

TEMPERATURE LIMIT 95 degrees Celsius, depending upon operating conditions

TEMPERATURE ACCURACY 1 degree Celsius, depending on operating conditions

FLOW RATE 4 to 60 Ipm (see performance graphs)

EFFICIENCY >99%

HEAT UP TIME >1 degree Celsius/second (see performance graphs)

PRESSURE RATING 100 psig @ 24 degrees Celsius, 45 psig @ 90 degrees Celsius (limited by the rating of the PFA fittings)

MTBF Well in excess of 10,000 hours

TEMPERATURE REGULATING SYSTEM Distributive zero crossing SSR, powered by multi-loop PID control

TEMPERATURE SENSORS "J" type thermocouples

HEATING ELEMENT Cr-Al-Fe alloy resistance wire operating at 700 degrees Celsius

WETTED SURFACES GE type 214 quartz with 440 HP PFA interconnects

INLET/OUTLET 3/4" flare connections (48kW and higher)
1/2" flare connections (24kW)

FORCED VENTILATION None required

PURGE GAS None required

EXHAUST VENTILATION None required

STANDARD SAFETY FEATURES

Liquid over-temperature shutoff and alarm

Liquid leak detection shutoff and alarm

SEMI S3 compliant, 24 VAC low voltage controls

Low liquid flow detection shutoff

Heater module over-temperature shutoff and alarm

Flow verification/power level control

Redundant heater module over-temperature safety

Automatic cycle cool-down

Emergency off (EMO) with remote capabilities

Ground fault protection

CERTIFICATIONS

ETL certified and CE compliant

Conforms to UL 499 standards

Semi S2 and S3 compliant

OPTIONS

PLC control

RS 232 or RS 485 communication port

Capacitive style leak detection

Resistivity monitoring

Flow monitor display

Air cooled SSRs

OEM-style heater subassembly modules

Seismic hold-downs

Sizing chart

Performance graphs

Product cutaway illustration

DOWNLOAD THE INLINE WATER HEATER SPECIFICATION SHEET

DOWNLOAD THE INSTALLATION MANUAL
