Wet Process Heating and Cooling Equipment |
|
||
| EXCHANGE AREA (Sq. ft.) |
DIMENSIONS ~ Inches/(mm) | MODEL NUMBER |
SHIP WGT. Lbs./(kg) |
|||
|---|---|---|---|---|---|---|

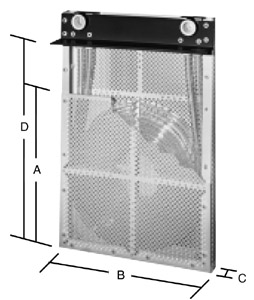

| A | B | C | D | |||
| 2.25* | 11-1/2 (293) |
11-1/2 (293) |
1-1/2 (38) |
17-1/2 (445) |
X1-12-12-18-F | 10 (4.5) |
| 4.50* | 11-1/2 (293) |
11-1/2 (293) |
2 (51) |
17-1/2 (445) |
X2-12-12-18-F | 12 (5.5) |
| 4.50* | 15-1/2 (394) |
15-1/2 (394) |
1-1/2 (38) |
21-1/2 (550) |
X2-16-16 -22-F | 15 (7) |
| 9.25* | 15-1/2 (394) |
15-1/2 (394) |
2 (51) |
21-1/2 (550) |
X4-16-16-22-F | 18 (8) |
| 6.00 | 17-1/2 (445) |
17-1/2 (445) |
2 (51) |
23-1/2 (597) |
X2-18-18-24-F-LP | 22 (10) |
| 12.00 | 17-1/2 (445) |
17-1/2 (445) |
3-1/4 (82.5) |
23-1/2 (597) |
X4-18-18-24-F-LP | 30 (13.5) |
| 18.00 | 17-1/2 (445) |
17-1/2 (445) |
4-1/2 (114) |
23-1/2 (597) |
X6-18-18-24-F-LP | 38 (17.5) |
| 24.00 | 17-1/2 (445) |
17-1/2 (445) |
5-3/4 (146) |
23-1/2 (597) |
X8-18-18-24-F-LP | 42 (19) |
| 11.50 | 23-1/2 (597) |
23-1/2 (597) |
2 (51) |
29-1/2 (750) |
X2-24-24-30-F-LP | 32 (14.5) |
| 23.00 | 23-1/2 (597) |
23-1/2 (597) |
3-1/4 (82.5) |
29-1/2 (750) |
X4-24-24-30-F-LP | 37 (17) |
| 34.50 | 23-1/2 (597) |
23-1/2 (597) |
4-1/2 (114) |
29-1/2 (750) |
X6-24-24-30-F-LP | 41 (18.5) |
| 46.50 | 23-1/2 (597) |
23-1/2 (597) |
5-3/4 (146) |
29-1/2 (750) |
X8-24-24-30-F-LP | 60 (27) |
| * = 1/4" (7 mm) diameter tubing. All other coils have 1/2" (13 mm) diameter tubing. | ||||||
Product Features and Benefits:
SUPERIOR CHEMICAL RESISTANCE: For heating or cooling of most aqueous acid and alkaline solutions. Check solution guide or consult with your chemical supplier for proper sheath material selection.
RUGGED CONSTRUCTION:
• All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. • Heavy duty CPVC mounting bracket. • 1/8-inch thick perforated guard helps protect the coil from damage. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of ½-inch (13 mm) tubing, smaller coils have ¼-inch (7 mm) tubing.
LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.
PRESSURE RATING:
• Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. • PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. • 10 PSI minimum steam pressure required for operation. • Consult factory regarding pressure reduced applications. NON-CONDUCTIVE: Eliminates stray currents in the tank.
SIZES: 2.25 square foot to 46.5 square foot of exchange area standard.
OPTIONS AVAILABLE (consult factory):
• Anti-floatation brackets. • Special sizes. • Special manifold configurations. • L-shaped configurations for bottom heat applications. • Dual coils for both heating and cooling. NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
DOWNLOAD THE INFORMATION SHEET (including dimensional diagram) IN .PDF FORMAT (approximately 100-150KB).
You will need the Adobe Acrobat program to view the information sheet. If you do not have Adobe Acrobat and would like to download it for free, press the button below.
